3-in-1 Hot Filling Machine
Product Detail:
Quick Details:
Condition: New Application: Beverage Packaging Type: Bottles
Packaging Material: Plastic Automatic: YES Place of Origin: Shanghai China Brand Name: Joysun
Specifications
This 3-in-1 hot filling machine can be used as tea filling machine or fruit juice filling machine, with its productivity available from 3000 to 36000BPH.
Benefits of 3-in-1 Hot Filling Machine
1. This 3-in-1 hot filling machine adopts direct connection between the air conveyor and the in-feeding starwheel. It omits the in-feeding screw and the conveying chain, making it simple to change bottles. Newly-designed bottle-separating grippers are assembled to starwheel.
2. It adopts neck-hanging technology for bottle transportation. Instead of traditional starwheel, neck-hanging gripper is applied to make fast bottle changing, which requires only few parts to be adjusted.
3. This 3-in-1 hot filling machine has stainless steel rinser grippers, which have no contact to screw part of the bottle and cause no pollution to the bottle neck.
4. High-speed filling valve are equipped with perfect CIP system and control system for easy rinse.
5. The starwheel split adopts twist descending way for simple bottle changing. Only the arc board and starwheel need to be changed. It can be done within 10 minutes.
Technical Specifications
| Model | HGF18-12-6 | HGF18-18-6 | HGF24-24-8 | HGF32-32-10 | HGF40-40-12 | HGF50-50-15 | HGF80-80-20 |
| Production capacity (bph) | 2000~4000 | 4000~8000 | 8000~12000 | 12000~14000 | 14000~18000 | 18000~24000 | 24000~36000 |
| Filling volume (ml) | 250~1500 | 250~1500 | 300~2000 | 300~2000 | 300~2000 | 300~2000 | 300~2000 |
| Bottle size (mm) | D: Ø 50- Ø110 H:150-320 | ||||||
| Filling precision (mm) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Rinsing water consumption (m3/h) | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | 3.5 | 5 |
| Air pressure (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Air consumption (m3/min) | 0.5 | 0.5 | 0.5 | 0.5 | 0.6 | 1 | 1 |
| Power (kw) | 3.5 | 3.5 | 4 | 7.5 | 7.5 | 11 | 11 |
| Dimension (L×W×H)(mm) | 2300×1550 ×2500 | 2800×1900 ×2700 | 3200×2150 ×3000 | 3800×2900 ×3200 | 4200×3250 ×3300 | 4950×3900 ×3300 | 7800×5600 ×3300 |
| Weight (kg) | 2500 | 3000 | 5300 | 8000 | 10000 | 12000 | 13000 |
We are a 3-in-1 hot filling machine manufacturer with abundance experience in the manufacture of filling machines. In addition to 3-in-1 hot filling machines, we can also offer you 3-in-1 water filling machines, 3-in-1 carbonated drink filling machines, super clean filling machines, aseptic filling machines, etc. With long service life and simple operation, these machines are widely used in the production of drinking water and beverages. Please feel free to contact us for more information!
Rinsing Part

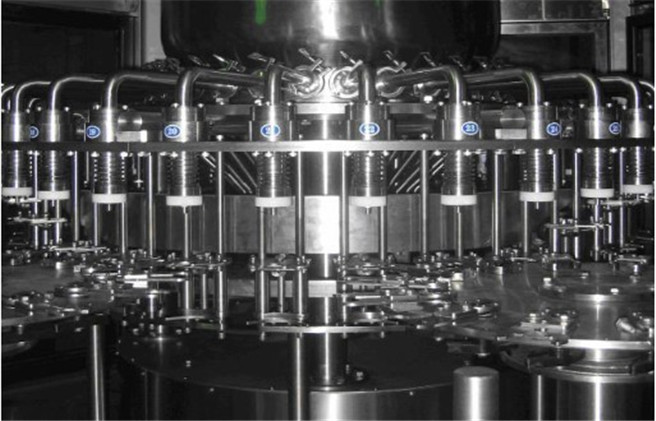

Filling Part
Capping machine
