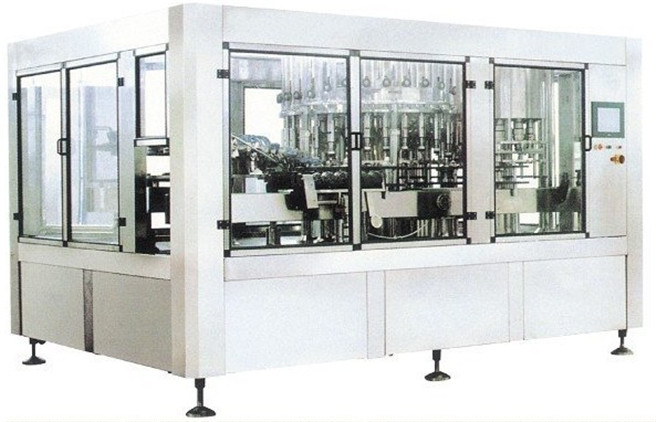

3-in-1 Carbonated Drink Filling Machine
Product Detail:
Quick Details:
Condition: New Application: Beverage Packaging Type: Bottles
Packaging Material: Plastic Automatic: YES Place of Origin: Shanghai China Brand Name: Joysun
Specifications
3-in-1 Carbonated Drink Filling Machine could also be used as soft drink filling machine for filling carbonated drinks and soft drinks. It is available with its productivity ranging from 3000 to 36000BPH.
Characteristics of 3-in-1 Carbonated Drink Filling Machine
1. Direct connection is adopted between air conveyor and in-feeding starwheel to take the place of in-feeding screw and conveyor. This greatly simplifies the bottle changing of the drink filling machine.
2. This 3-in-1 carbonated drink filling machine adopts neck-hanging technology for the bottle transportation. Instead of traditional starwheel, we use neck-hanging gripper for simple bottle changing. Requiring no height adjustment, only the arch board and starwheel and other little nylon parts need to be changed.
3. Its rinser gripper is specially made of stainless steel, which is firm and durable. It has no contact to the screw parts and avoids the pollution done to the bottle neck.
4. The valve opening device is driven by cylinder, which is accurate for the flow control.
5. Starwheel splint adopts twist descending. It is an easy way for bottle changing of this 3-in-1 carbonated drink filling machine.
Technical Specifications
| Model | CGF18-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 | CGF72-72-18 |
| Production capacity (bph) | 2000~4000 | 4000~6000 | 6000~8000 | 8000~12000 | 12000~16000 | 16000~18000 | 18000~24000 |
| Filling volume (ml) | 250~1500 | 250~1500 | 300~2000 | 300~2000 | 300~2000 | 300~2000 | 300~2000 |
| Bottle size (mm) | D: Ø 50- Ø110 H:150-320 | ||||||
| Filling precision (mm) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Rinsing water consumption (m3/h) | 0.8 | 1 | 1.6 | 2 | 2.5 | 3.5 | 5 |
| Air pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption (m3/min) | 1 | 1 | 1 | 1 | 1 | 1 | 1.2 |
| Power (kw) | 4 | 5 | 6.5 | 8.5 | 10 | 11 | 13 |
| Dimension (L×W×H)(mm) | 2300×1550 ×2700 | 2800×2100 ×2700 | 3100×2200 ×2700 | 4100×2900 ×3250 | 4600×2950 ×2850 | 5900×4100 ×2750 | 6500×4900 ×2750 |
| Weight (kg) | 2800 | 3500 | 4800 | 8500 | 10000 | 12000 | 12500 |
We are a 3-in-1 carbonated drink filling machine manufacturer located in Shanghai city, China. Surrounded by transportation possibilities by airport, deepwater dock, and highways, we are able to ship our plastic processing machinery and beverage production lines at reduced costs. In addition to 3-in-1 carbonated drink filling machines, we can also offer injection molding machines, soft drink filling machines, injection molding machines, water treatment, blow molding machines and more products. Please feel free to contact us for more information!
